Products Description
Hot dip galvanizing is the reaction of molten metal with iron matrix to produce an alloy layer, which combines the matrix with the electroplating layer. Hot-dip galvanizing is the first pickling of steel parts. In order to remove iron oxide from the surface of steel parts, after pickling, it is cleaned in an aqueous solution of ammonium chloride or zinc chloride or a mixed solution of ammonium chloride and zinc chloride. Then feed into the hot dip plating bath. Hot dip galvanizing has the advantages of uniform coating, strong adhesion and long service life.
Feature of HRC Hot Rolled Galvanized Steel Coil：
1. Galvanized steel coil has light weight, beautiful appearance and good corrosion resistance, and can be directly processed.
2. It provides a new type of raw material for construction industry, shipbuilding industry, vehicle manufacturing industry, furniture industry, electrical industry and so on, and has played a good role in replacing wood with steel, efficient construction, energy saving and pollution prevention.
Product specification of HRC Hot rolled galvanized steel coil：
|
Technical Standard |
EN10147, EN10142, DIN 17162, JIS G3302, ASTM A653 |
|
Steel Grade |
Dx51D, Dx52D, Dx53D, DX54D, S220GD, S250GD, S280GD, S350GD, S350GD, S550GD; SGCC, SGHC, SGCH, SGH340, SGH400, SGH440, SGH490, |
|
Type |
Coil/Sheet/Plate/Strip |
|
Thickness |
0.12-6.00mm,or customer's requirement |
|
Width |
600mm-1500mm, according to customer's requirement |
|
Type of Coating |
Hot Dipped Galvanized Steel(HDGI) |
|
Zinc Coating |
30-275g/m2 |
|
Surface Treatment |
Passivation(C), Oiling(O), Lacquer sealing(L), Phosphating(P), Untreated(U) |
|

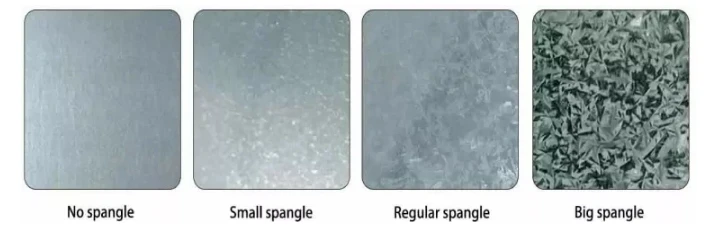

Surface Structure |
Normal spangle coating(NS), minimized spangle coating(MS), spangle-free(FS) |
|
Quality |
Approved by SGS,ISO |
|
ID |
508mm/610mm |
|
Coil Weight |
3-20 metric ton per coil |
|
Package |
Water proof paper is inner packing,galvanized steel or coated steel sheet is outer packing , side guard plate,then wrapped by |
Galvanized sheet surface

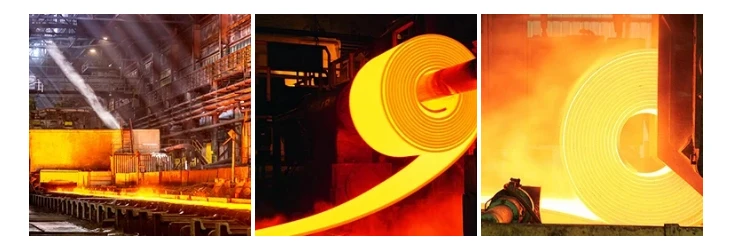

Production of HRC Hot rolled galvanized steel coil：
Galvanized coil is a thin steel plate in which the thin steel plate is immersed in a bath of molten zinc so that a layer of zinc adheres to the surface. It is mainly produced by continuous galvanizing process, that is, galvanized steel plate is made by continuously dipping rolled steel plate into an electroplating bath containing molten zinc. This steel plate is also made by hot dipping, but immediately after coming out of the tank, it is heated to about 500°C to form an alloy coating of zinc and iron. This galvanized coil has good paint adhesion and weldability.
FAQ
Q:Can I get samples before order ?
A:Yes, of course. Usually our samples are free,we can produce by your samples or technical drawings.
Q:Can I go to your factory to visit?
A:Of course, we welcome customers from all over the world to visit our factory.
Q:How can I get a quotation from you ?
A:You can leave us message, and we will reply every message in time. Or we may talk on line.
Q:What product information do I need to provide?
A:You need to provide the grade, width, thickness, coating and the number of tons you need to purchase.
Q:Does the product have quality inspection before loading?
A:Of course, all our products are strictly tested for quality before packaging, and unqualified products will be destroyed.we accept the third party inspection absolutely.
