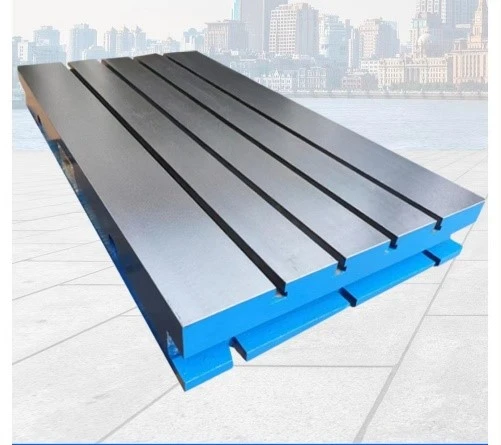

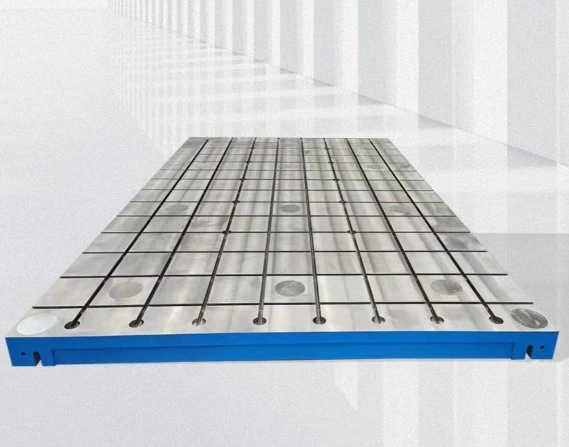

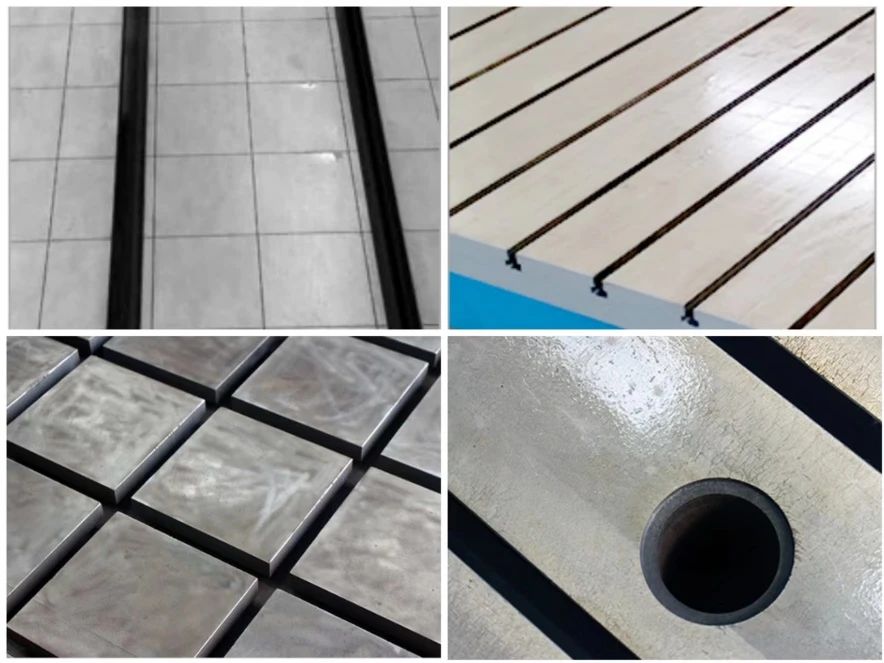

Product overview: The overall structure of the cast iron flat platform is basically box type and reinforcement plate, the working surface is rectangular, square, or round, the material is HT-200-300, according to the precision processing is divided into: There are two kinds of fine planing and scraping process, the flat platform working surface can be processed V-shaped T-shaped U-shaped groove, dovetail groove, round hole, long hole, etc., suitable for workpiece, equipment detection, marking, assembly, welding, assembly, riveting and welding plane reference tool.
The material is high strength cast iron HT-200-250 working face hardness HB160-210. After two treatments) artificial annealing 600-700, and natural aging 2-3 years, so that the accuracy of the product is stable, not easy to wear. The precision of the cast iron flat platform is according to the specifications of the cast iron platform 200*200mm--8000*3000mm (special specifications can be made according to demander's drawings)
Products Description
Cast iron grinding platform features:
The measurement is accurate and firm to use, the surface pushes the table seat, the workpiece is relatively smooth, without hindrance
Manual scraping process has good versatility
Various specifications, customized support, not easy to deformation
Detailed selection parameters:
|
Specifications (length * width) mm |
Specifications (length * width) mm |
||||
|
Lv. 0 |
Lv. 1 |
Lv. 2 |
Lv. 3 |
Finish plane |
|
|
100*100 |
4 |
8 |
26 |
|
|
|
200*100/200*200 |
5 |
10 |
20 |
|
|
|
300*200/300*300/400*300/400*400/500*300 |
6 |
12 |
24 |
|
|
|
500*500/600*400/600*500 |
7 |
14 |
28 |
|
|
|
800*500/800*500/800*600 |
8 |
16 |
32 |
80 |
|
|
1000*750 |
9 |
18 |
36 |
96 |
|
|
1000*1000 |
10 |
20 |
39 |
96 |
|
|
1200*100 |
|
20 |
39 |
120 |
|
|
1500*1000 |
|
24 |
48 |
120 |
|
|
1500*1500 |
|
25 |
50 |
125 |
|
|
2000*1000 |
|
26 |
52 |
129 |
|
|
2000*1500 |
|
|
56 |
140 |
|
|
2000*2000 |
|
|
60 |
152 |
230 |
|
2500*1500 |
|
|
64 |
152 |
230 |
|
2500*2000 |
|
|
68 |
168 |
248 |
|
2500*2500 |
|
|
72 |
180 |
270 |
|
3000*1000 |
|
|
|
168 |
248 |
|
3000*1500 |
|
|
|
184 |
254 |
|
3000*2000 |
|
|
|
184 |
276 |
|
3000*2500 |
|
|
|
186 |
276 |
|
3000*3000/4000*1000/4000*1500 |
|
|
|
210 |
300 |
|
4000*2000 |
|
|
|
219 |
310 |
|
4000*2500 |
|
|
|
228 |
340 |
|
4000*3000 |
|
|
|
240 |
360 |
|
5000*1500 |
|
|
|
249 |
370 |
|
5000*2000 |
|
|
|
255 |
375 |
|
5000*2500 |
|
|
|
264 |
390 |
|
5000*3000/6000*1500 |
|
|
|
287 |
420 |
|
6000*2000 |
|
|
|
293 |
460 |
|
6000*2500 |
|
|
|
600 |
450 |
|
6000*3000 |
|
|
|
308 |
460 |
|
8000*1500 |
|
|
|
366 |
500 |
|
8000*2500 |
|
|
|
370 |
520 |
|
8000*3000 |
|
|
|
375 |
530 |

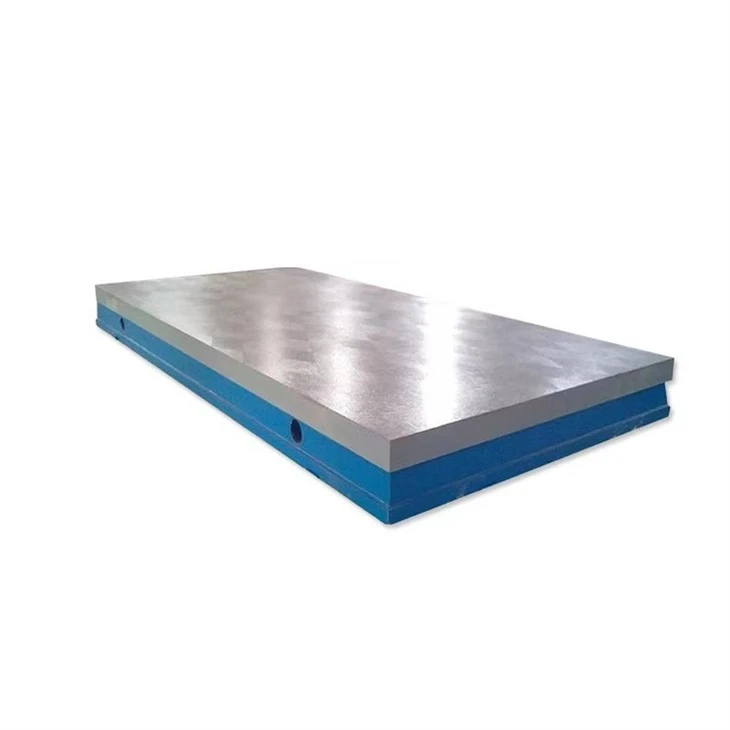

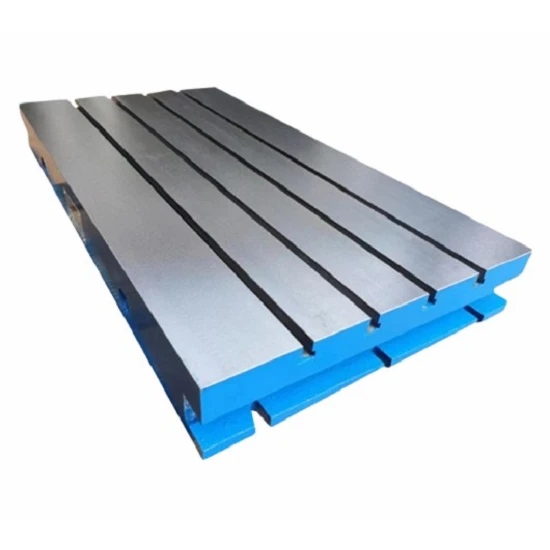

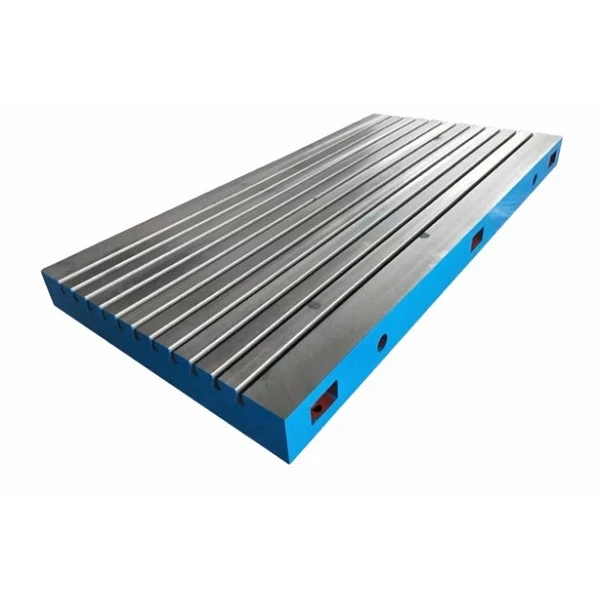

Cast iron grinding plate:
our service
1. Free sample can be supplied
2. Trial order is acceptable
3. Third party test is acceptable
4. Delivery time guarantee
why choose us
Strict material selection
Long service time
Factory work
mature technology
Specification diversification
Support processing
FAQ:
Q1. How can I get a quotation from you?
A: You can leave us message, and we will reply every message in time. Or we may talk on line by Trade manager. And you can also find our contact information on contact page.
Q2: Can I get samples before order?
A: Yes, of course. Usually our samples are free. we can produce by your samples or technical drawings. We can build the molds and fixtures.
Q3. What is your delivery time?
A: The time of delivery is usually around 15-20 days. We can send out in 2 days, if it has stock.
Q4 How can we guarantee quality?
Always a pre-production sample before mass production;
Always final Inspection before shipment;
Q5.What can you buy from us?
Cold Rolled Steel Coil,Pre-painted Galvanized Coil,Aluminum Coil,Stainless Steel Plate,Hot Rolled Steel Coil,Steel Profiles
Q6. How do you make our business long-term and good relationship?
A: We keep good quality and competitive price to ensure our customers benefit ; We respect every customer as our friend and we sincerely do business and make friends with them, no matter where they come from.

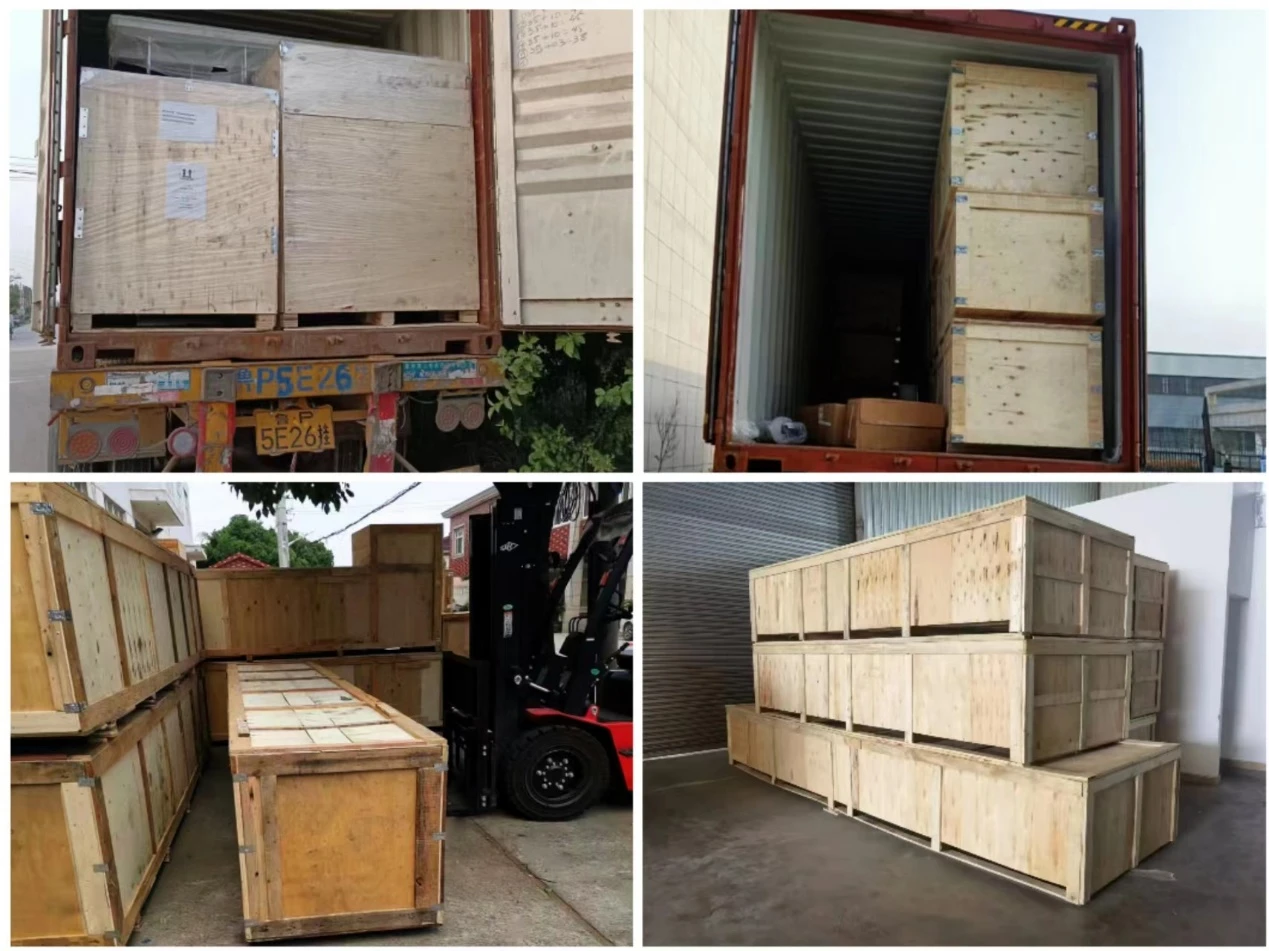

Packing & Shipping:
Hot Tags: cast iron grinding plate, China cast iron grinding plate manufacturers, suppliers
